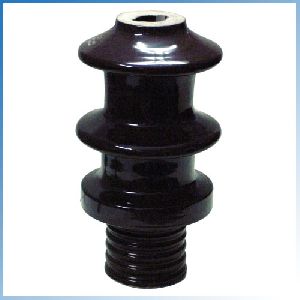

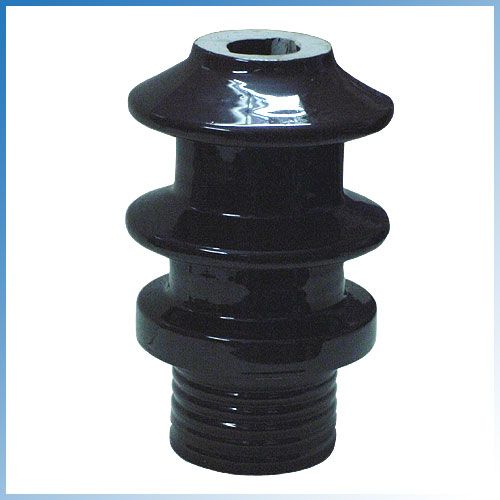

12 KV Transformer Bushing


Price : INR 150.00 / Piece(s)




Features :

  • Smooth Surface
  • Extreme Weather & Environmental Resistant
  • High Strength
  • Fully Vitrified
  • High Creepage Options




Specifications

Application Distribution Transformers, Power Transformers, Ct Pt
Material Porcelain
Brand Shine


Specification

S. No. Transformer Bushings for Normally Polluted Athmosphere Product Code Nominal System Voltage Visible Discharge Voltage Power Frequency Withst and Voltage (dry) Power Frequency Withstand Voltage (wet) Impulse with Stand Voltage Colour of Glaze Specification Packing
1 12-17.5 KV/250 Amps Transformer Bushing SRG-01 12-17.5 KV 9 KV 38 KV 38 KV 95 KV Brown IS 3347 & IS 2099 Corrugated Boxes
2 12-17.5 KV/630 Amps Transformer Bushing SRG-02 12-17.5 KV 9 KV 38 KV 38 KV 95 KV Brown IS 3347 & IS 2099 Corrugated Boxes
3 12-17.5 KV/1000 Amps Transformer Bushing SRG-03 12-17.5 KV 9 KV 38 KV 38 KV 95 KV Brown IS 3347 & IS 2099 Corrugated Boxes
4 12-17.5 KvV2000 Amps Transformer Bushing SRG-04 12-17.5 KV 9 KV 38 KV 38 KV 95 KV Brown IS 3347 & IS 2099 Corrugated Boxes
5 12-17.5 KV/3150 Amps Transformer Bushing SRG-05 12-17.5 KV 9 KV 38 KV 38 KV 95 KV Brown IS 3347 & IS 2099 Corrugated Boxes
